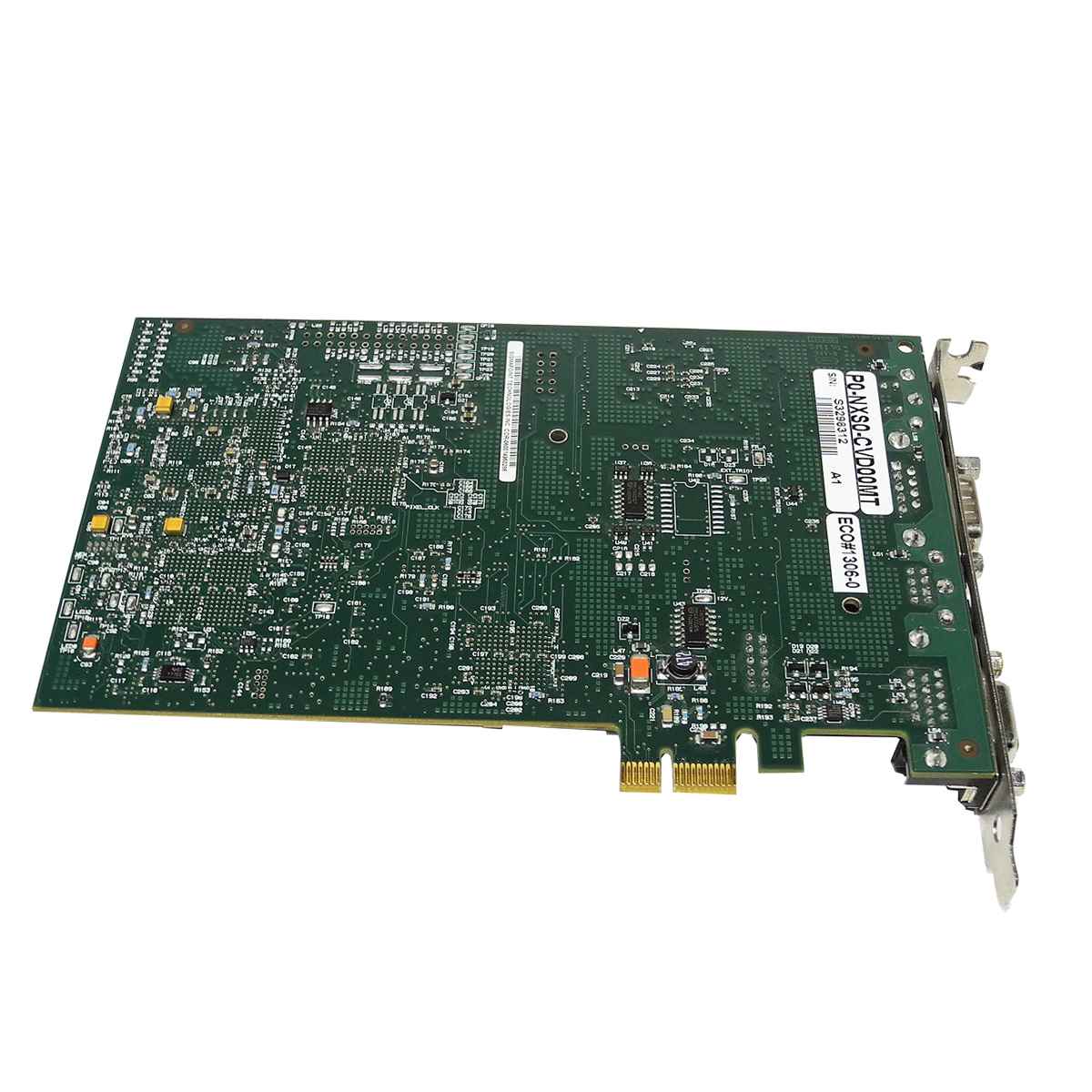

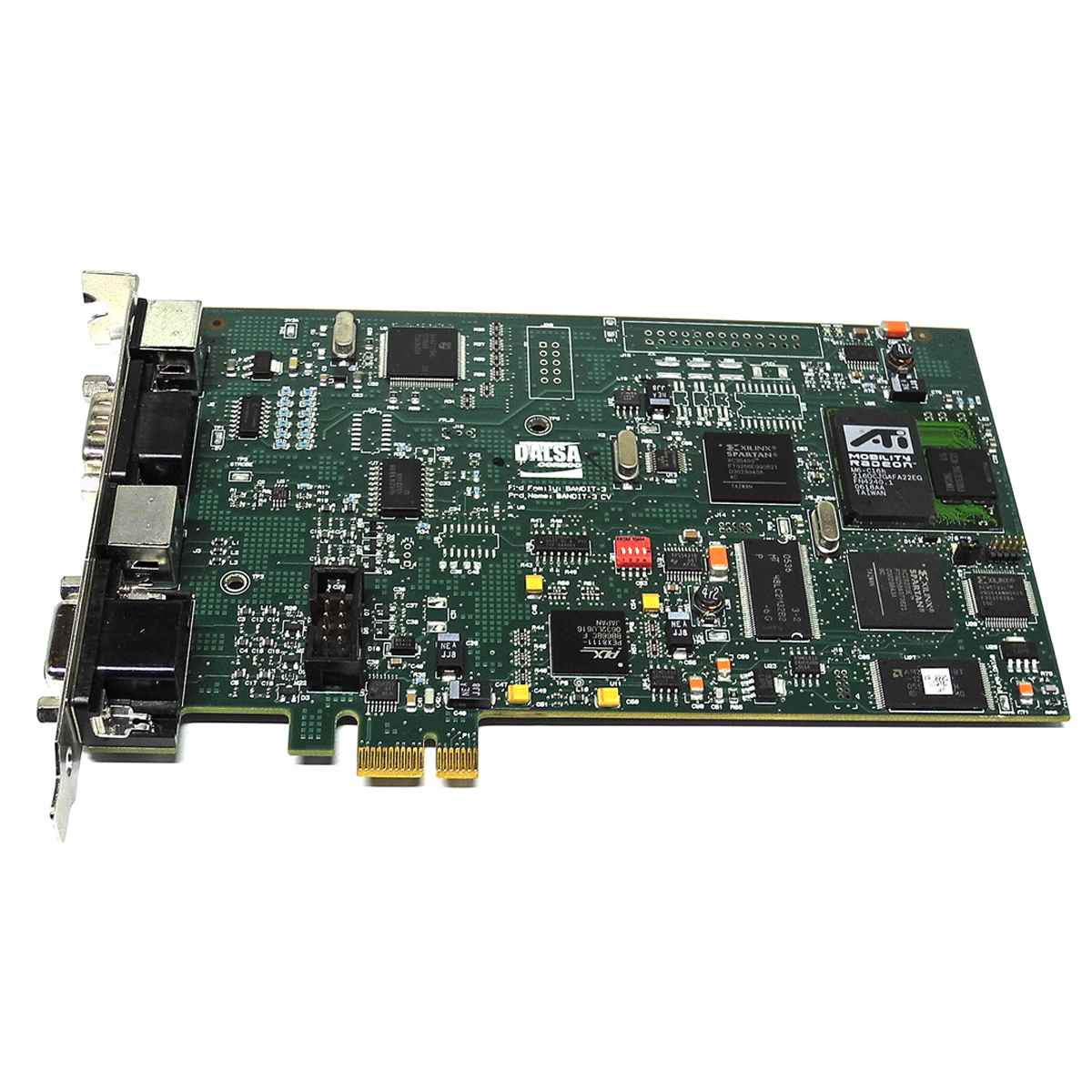

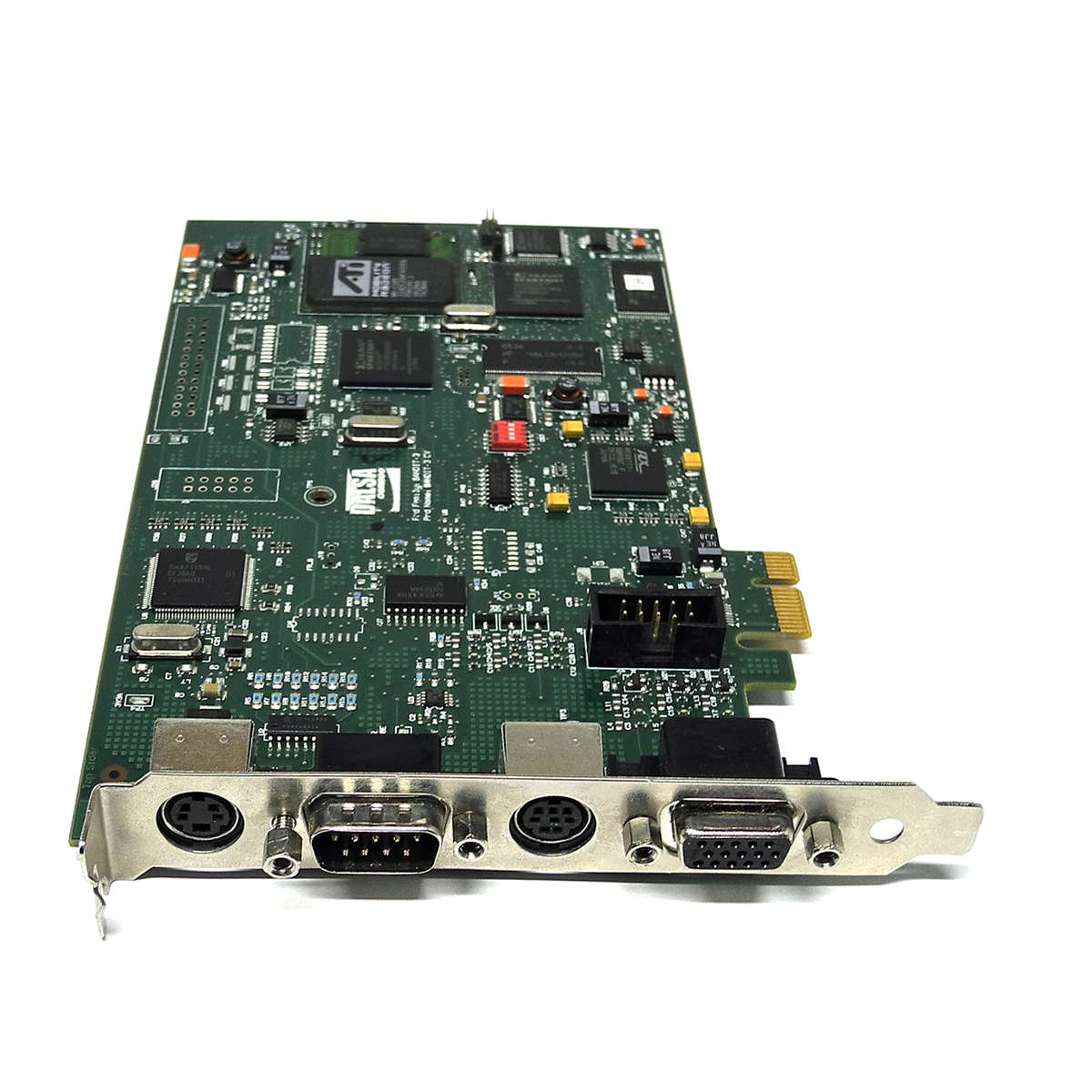

DALSA Bandit-3 CV PCIe x1 Video Capture and VGA Accelerator Card

499,00 €

Produktnummer: P25536

Produktinformationen "DALSA Bandit-3 CV PCIe x1 Video Capture and VGA Accelerator Card"


DALSA Bandit-3 CV PCIe x1 Video Capture and VGA Accelerator Card Modell: Bandit-3 CV MPN: P0-NXS0-CVD00MT
Technical data / Technische Daten
Manufacturer / Hersteller	DALSA
Type / Gerätetyp	Videoaufnahmekarte
Formfaktor	Full-profile
Interfaces / Schnittstellen	2 x S-Video Y/C Connectors 1 x VGA D-Sub 15-polig Connector 1 x D-Sub 9-polig Connector
Bus Interface	PCI-Express x1
Features / Leistungsmerkmale	Standard RS170, NTSC, CCIR, and PAL formats
TV Output	Integrated, independent TV NTSC/PAL output formats Outputs composite video or S-Video signals for TV type monitors Programmable, adaptive 3-tap flicker filter Vertical under-scan and over-scan compensation Secondary output displays VGA with video and overlay
Display	On board 2D/3D VGA accelerator allows true color 1280 x 1024 at 85Hz.Independent multi-head display allows two VGAs or VGA and TV output 8, 16, or 32-bpp acceleration
Delivery / Lieferumfang	1 x DALSA Bandit-3 CV Videoaufnahmekarte
More information and details can be found on the pages of the manufacturer. Weitere Informationen und Details finden Sie auf den Seiten des Herstellers.
