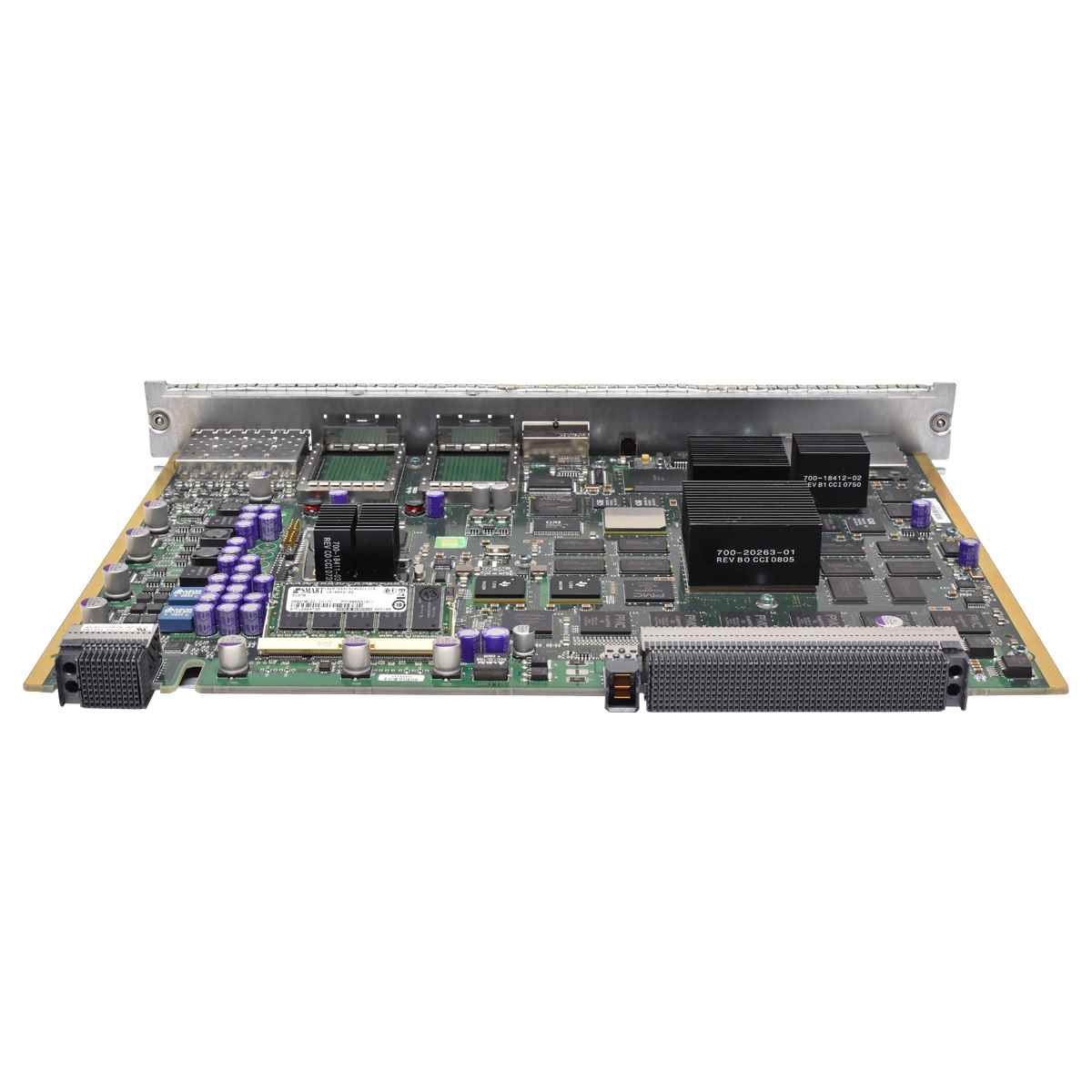

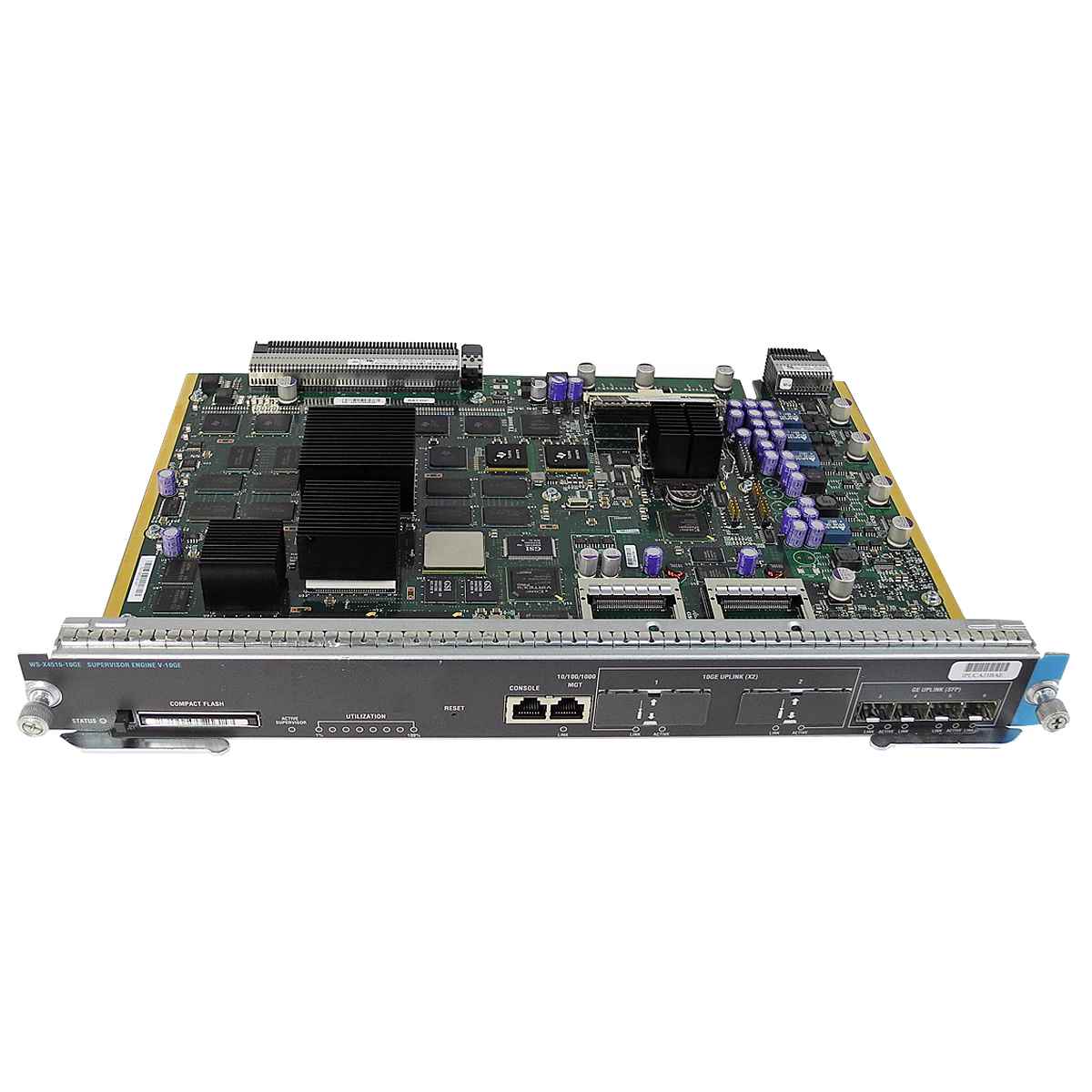

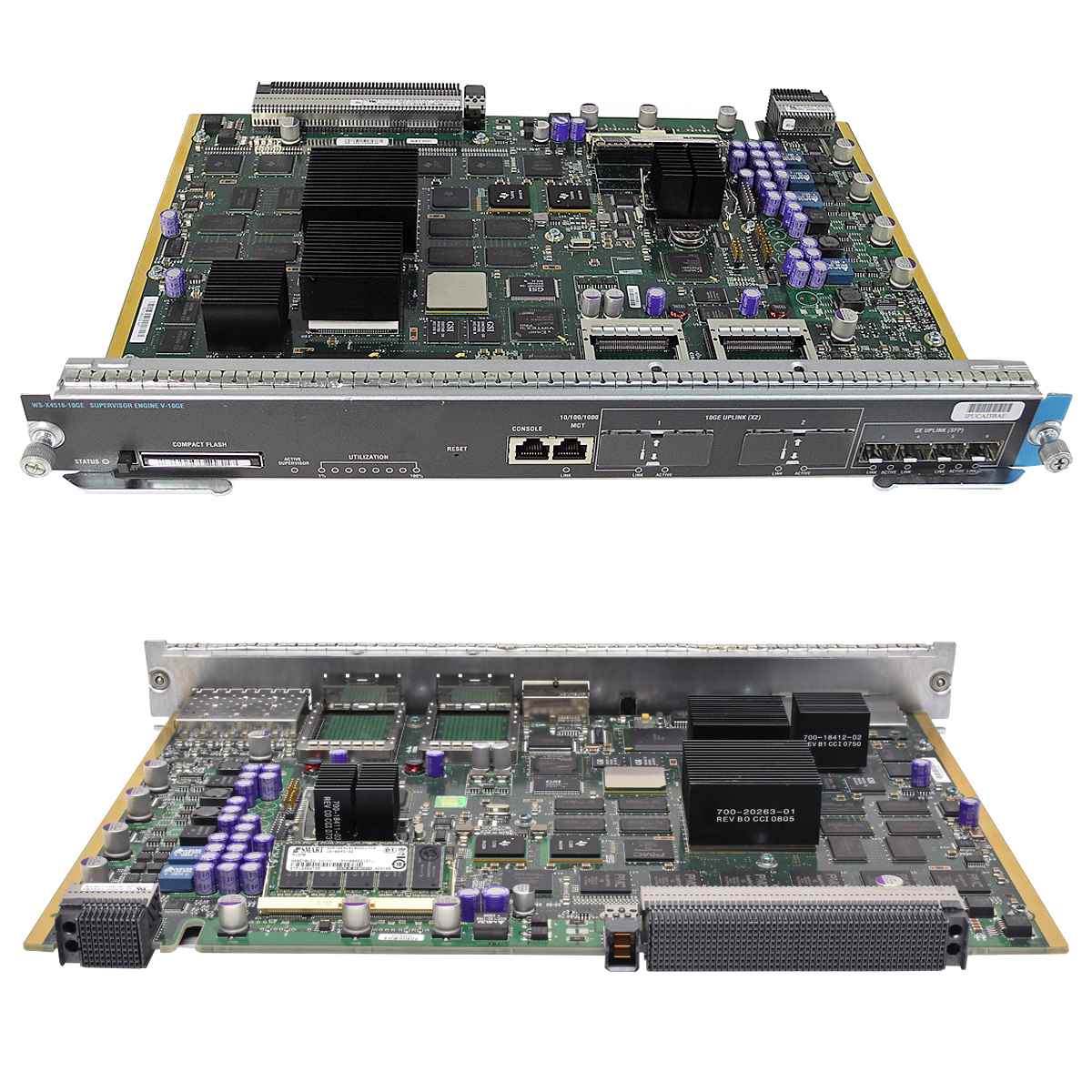

Cisco Catalyst 4500 Series WS-X4516-10GE Supervisor Engine V-10GE 73-11453-02 A0

Cisco

Cisco Catalyst 4500 Series WS-X4516-10GE Supervisor Engine V-10GE

Modell: WS-X4516-10GE
MPN: 73-11453-02 A0

Technische Daten

Technical Data / Technische Daten

Type / Gerätetyp

Supervisor Engine Switch Modul

Formfaktor

Plug-In Modul

Data Link Protokoll

Gigabit Ethernet, 10 GbE, Fibre Channel

Switching Capacity / -Kapazität

136 Gbps

MAC Adresse

55000

Data Transfer Rate / Datenübertragungsrate

10 Gbps

Memory / Speicher

SDRAM: 512MB

Features / Leistungsmerkmale

Autosensing, Autonegotiation, half/full-Duplex, Flow Control ,
Spanning-Tree Protocol, Link Aggregation, dynamic QoS, IPv6 Support,
VLAN Support, Jumbo Frames Support u.v.m.

Interfaces / Schnittstellen

2 x TwinGig Converter Module CVR-X2-SFP V02 Slots
1 x Compact Flash Card Slot
1 x Console RJ45 Port
1 x 10/100/1000Base-T Management RJ45 Port
4 x 1000Base-X SFP Ports

Compatibility / Kompatibilität

Cisco Catalyst 4503, 4506, 4507R, and 4510R,
Cisco Catalyst 4503-E, 4506-E, 4507R-E, 4507R+E, 4510R-E,  4510R+E1

Standards

IEEE 802.1D (STP)
IEEE 802.1w (RSTP)
IEEE 802.1X (Security)
IEEE 802.3 (Ethernet)
IEEE 802.3ad (Link Aggregation)
IEEE 802.3ab (1000BASE-T)
IEEE 802.3z (1000BASE-X)
IEEE 802.3an(10GBASE-T)
IEEE 802.3x (Flow Control)
EN 55022, UL 1950, FCC Part 15 Class A, EN 55024, RoHS, AS/NZS 3548,
UL 60950, VCCI Class A, CE Mark

Lieferumfang

1 x Cisco WS-X4516-10GE Supervisor Engine V-10GE
