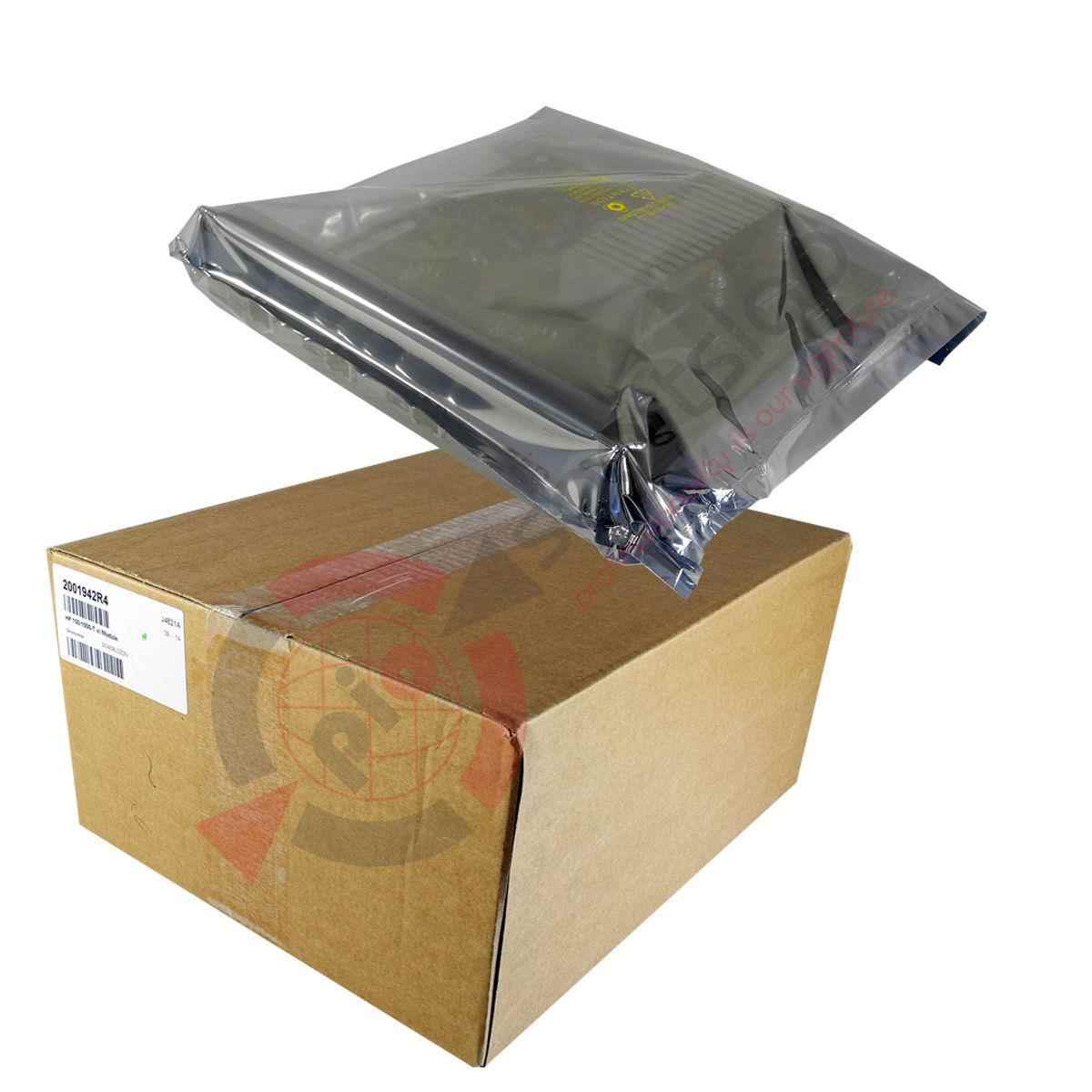

HP ProCurve 4100gl Series 24 Port Fast Ethernet Switch Modul Modell: J4862B

Technische Daten

Gerätetyp

Ethernet Switch Modul

Formfaktor

Plug-In-Modul

Data Link Protokoll

Ethernet, Fast Ethernet,

Remote Management Protokoll

SNMP v1/v2/v3, RMON 1/2/3/9, TFTP,CLI, Telnet, HTTP, BootP, SNTP,

Routing-Protokoll

RIP, BGP, OSPF

Data Transfer Rate

100 Mbps

Leistungsmerkmale

Autosensing, Autonegotiating, half/full-Duplex, Auto-MDIX, Flow Control, RADIUS, Spanning-Tree Protocol, QoS,
CoS,  Link Aggregation, DHCP, SSH Secure Shell,
VLAN Support, IGMP,

Schnittstellen

24 x 10/100Base-TX RJ45 Ports

Kompatibilität

HP ProCurve Switch 4104gl, 4108gl Series

Standards

IEEE 802.1D (STP)
IEEE 802.1p (CoS)
IEEE 802.1Q (VLANs)
IEEE 802.1w (RSTP)
IEEE 802.1X (Security)
IEEE 802.3 (Ethernet)
IEEE 802.3ad (Link Aggregation)
IEEE 802.3i (10BASE-T)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3x (Flow Control)
EN 55022, UL 1950, FCC Part 15 Class A, EN 55024,
UL 60950, VCCI Class A, CE
